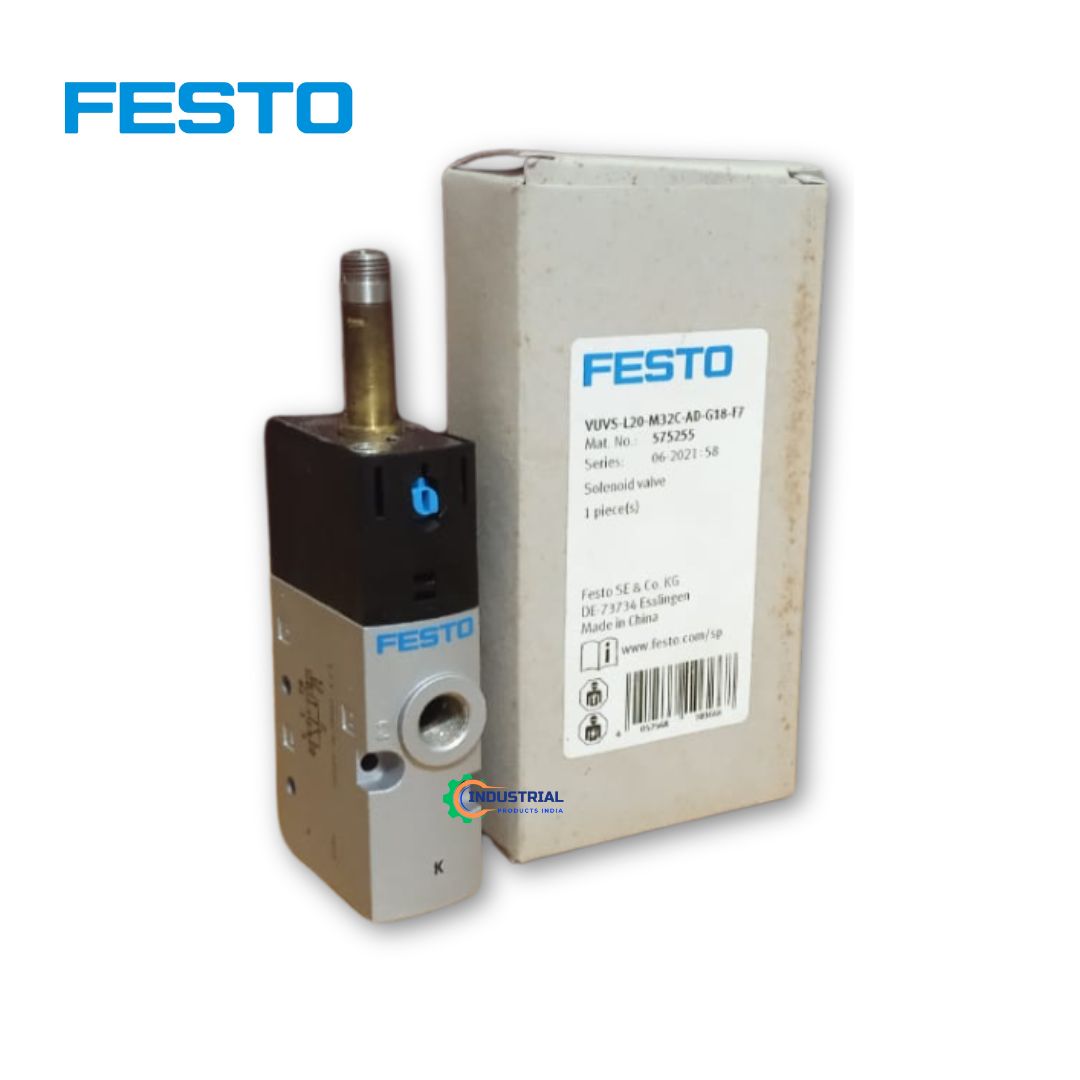

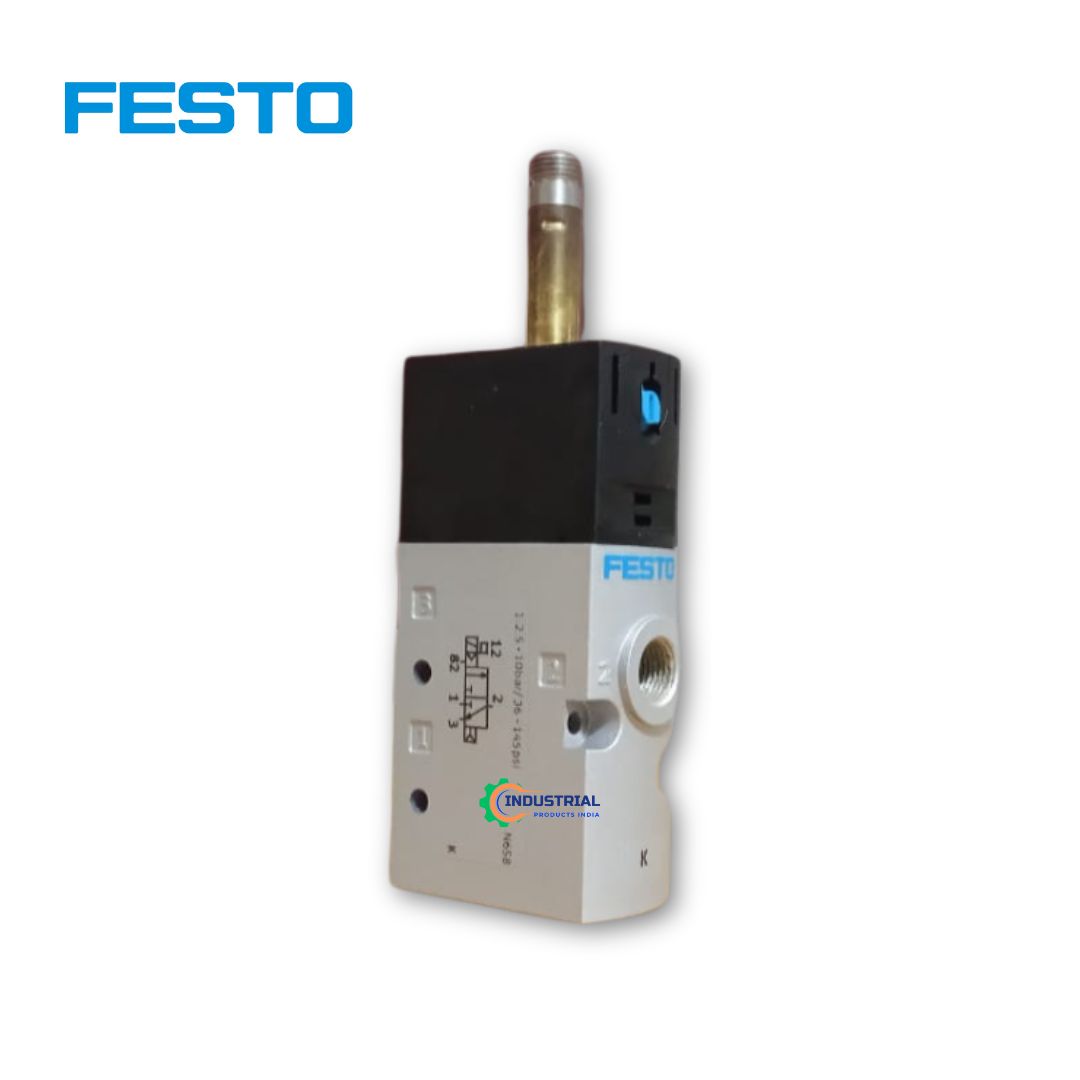

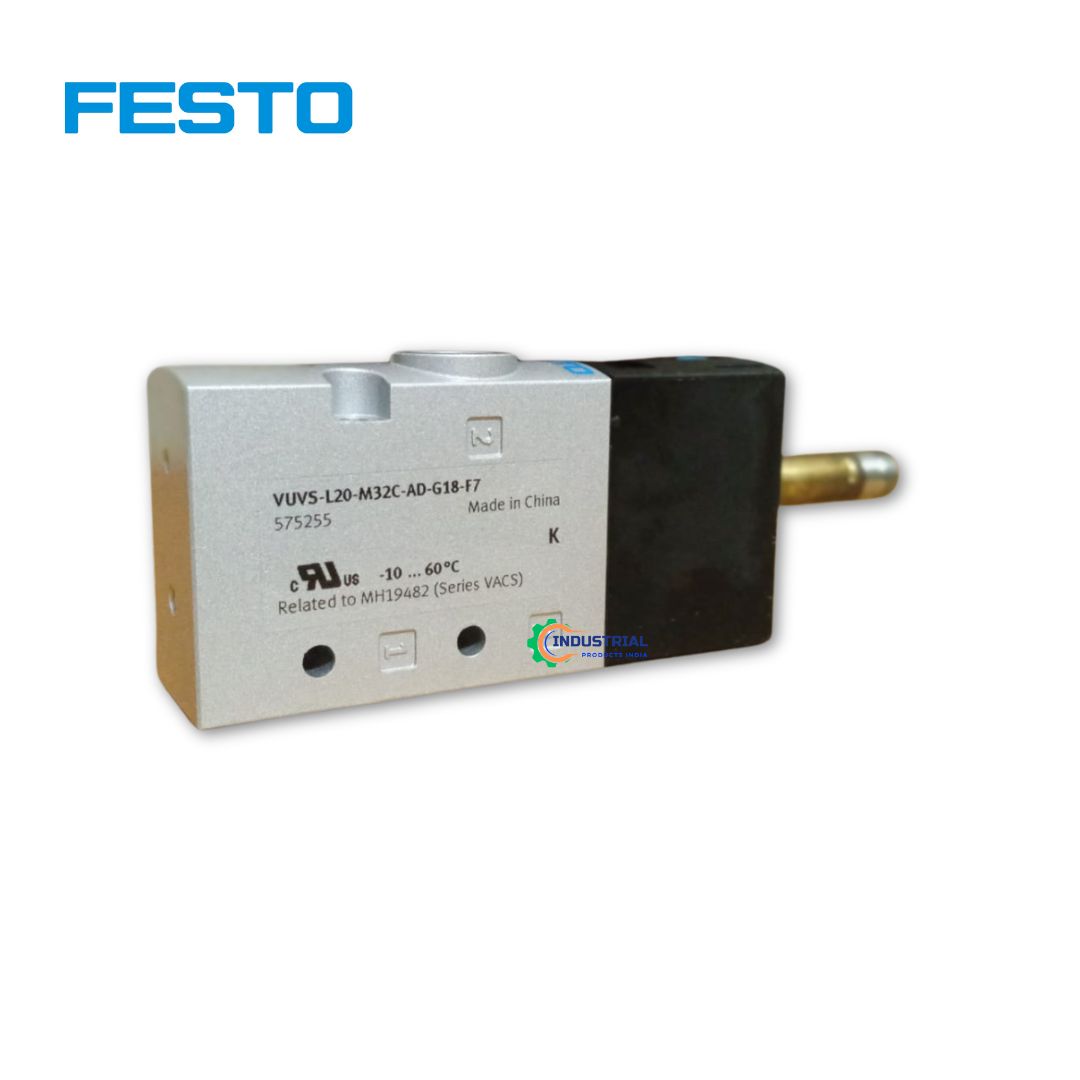

When it comes to industrial automation, having the right valve can make all the difference. The Festo VUVS-L20-M32C-AD-G18-F7 is a popular choice for engineers and maintenance teams. Here are the most frequently asked questions about this 3/2 single solenoid valve to help you make an informed buying decision.
❓ What is the valve function of the Festo VUVS-L20-M32C-AD-G18-F7?
This valve operates as a 3/2-way open, single solenoid valve, meaning it has three ports and two switching positions. It’s designed to control air flow with one solenoid and a pneumatic spring return.
❓ What applications is this valve ideal for?
The valve is perfect for factory automation, packaging machines, pneumatic control systems, robotics, and other systems requiring directional control of air flow.
❓ What are the port sizes?
All ports (1, 2, and 3) come with G1/8 connections, making it compatible with standard pneumatic fittings.
❓ Is this valve pilot actuated or direct acting?
This model is pilot actuated, using internal compressed air to assist valve operation, which allows it to handle higher flow rates with lower actuation effort.
❓ What are the flow and pressure specifications?
- Flow Rate: 700 l/min (DIN 1343 standard)
- Operating Pressure: 0.25 to 1 MPa (2.5 to 10 bar)
❓ Can this valve be mounted in any orientation?
Yes, it features an optional mounting position, making it flexible for tight or custom layouts.
❓ Does it come with a manual override?
Yes. It includes both detenting and non-detenting manual override options, allowing for quick testing or emergency operation without electrical input.
❓ What kind of sealing technology is used?
It uses soft sealing (HNBR, NBR) for secure, leak-free operation under standard industrial air conditions.
❓ Is this valve compatible with lubricated air?
Yes, lubricated operation is possible. However, once lubricated, the air supply must remain lubricated to maintain optimal performance.
❓ What is the temperature range for operation?
The valve supports an ambient and media temperature range of -10°C to +60°C, suitable for most factory and workshop environments.
❓ Is the valve certified or tested?
Yes, it is c UL us recognized, RoHS-compliant, and tested for shock and vibration resistance as per FN 942017 standards.
❓ Is the product resistant to corrosion?
With a Corrosion Resistance Class (CRC) of 2, it’s suited for environments with moderate corrosion stress.
❓ Where is the product manufactured?
This model is Made in China, backed by Festo’s global quality standards.
❓ Can I buy this valve online with direct checkout?
At Industrial Products India, you can request quotes directly via WhatsApp from verified vendors. This ensures personal support, bulk pricing options, and product authenticity.
❓ Where can I get the datasheet?
You can find the datasheet linked on the product page or request it during your WhatsApp quote conversation for more detailed technical insights.
Need More Info?
Whether you’re an automation engineer, plant manager, or procurement specialist, the Festo VUVS-L20-M32C-AD-G18-F7 delivers the reliability and performance your system needs. Connect with verified sellers and get competitive quotes only on Industrial Products India.
Get Quote Via WhatsApp: Festo VUVS-L20-M32U-AD-G18-F7 Solenoid Valve – industrialproductsindia.co.in
