Looking to upgrade your pneumatic setup with compact, high-performance actuators? The Festo ADVU-25-25-A-P-A air cylinder is a go-to choice in the automation industry. To make your decision easier, we’ve compiled a comprehensive list of FAQs to answer everything from specs to applications. Whether you’re a design engineer, maintenance technician, or procurement head, this guide is for you.
🔧 1. What is the Festo ADVU-25-25-A-P-A Compact Cylinder?

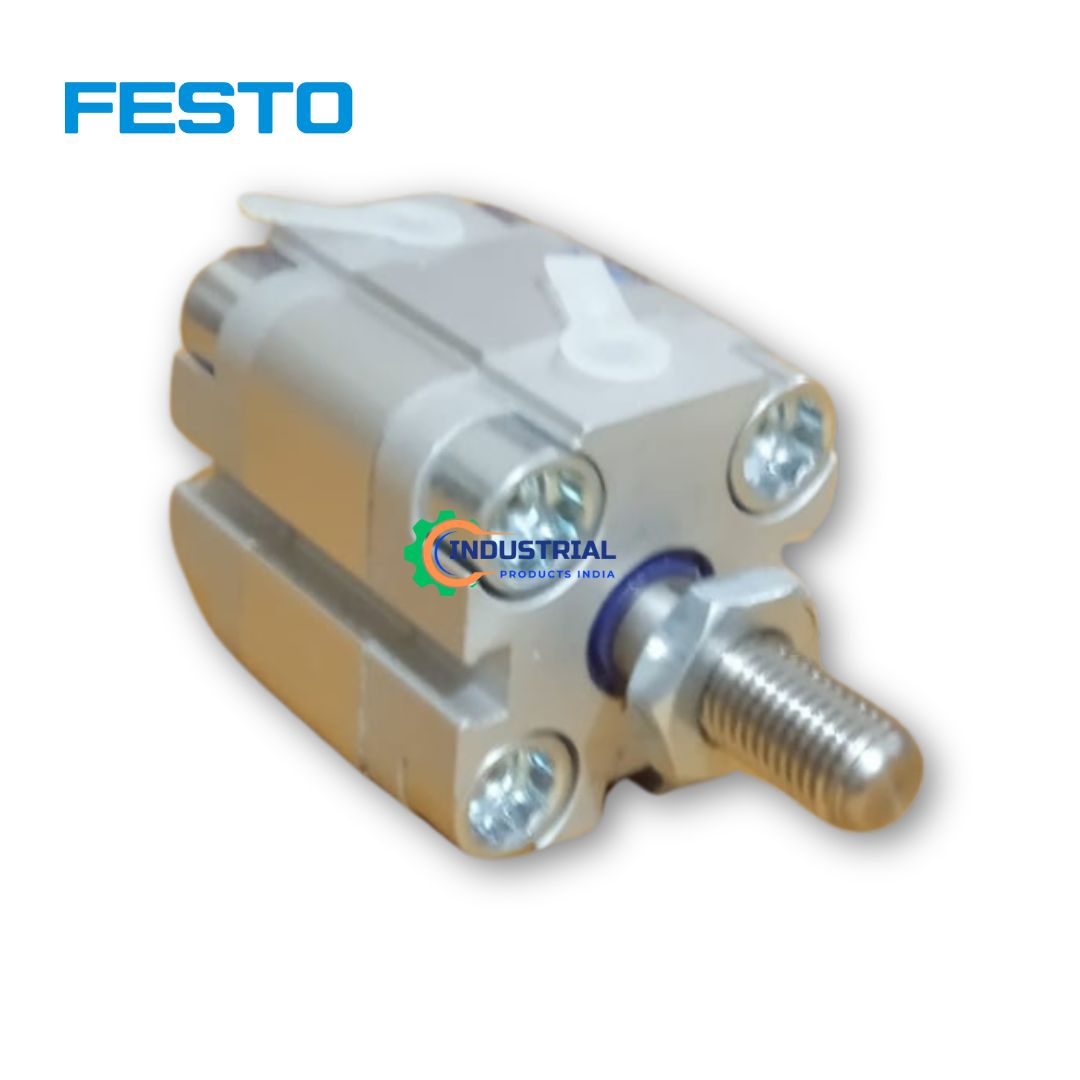

The Festo ADVU-25-25-A-P-A is a double-acting pneumatic cylinder with a 25 mm piston diameter and a 25 mm stroke. It’s part of Festo’s ADVU series known for its compact, space-saving design, built to deliver high performance in tight automation environments.
📐 2. What are its main technical specifications?
- Stroke Length: 25 mm
- Piston Diameter: 25 mm
- Theoretical Force @ 6 bar: 295 N (advance), 247 N (retract)
- Cushioning: Elastic pads at both ends
- Mounting Position: Any
- Operating Pressure: 1–10 bar (14.5–145 psi)
- Medium: Compressed air (ISO 8573-1:2010 [7:4:4])
- Temperature Range: -20°C to +80°C
- Corrosion Resistance Class: CRC 2 – Moderate stress
⚙️ 3. Is this cylinder suitable for all mounting positions?
Yes, the ADVU-25-25-A-P-A can be installed in any mounting position, making it highly adaptable for both horizontal and vertical machine layouts.
🧲 4. Can I use proximity sensors with this cylinder?
Absolutely. This cylinder is position-sensing compatible, which means you can install proximity sensors to detect the piston position for feedback in automated systems.
🛠️ 5. Is it suitable for both lubricated and non-lubricated air?
Yes, it supports both. However, if you start using lubricated air, you’ll need to continue using it to ensure long-term performance and avoid seal wear.
🧪 6. What is the cylinder made of?
- Cylinder Barrel & Cover: Wrought aluminum alloy
- Piston Rod: High-alloy stainless steel
- Seals: NBR and TPE-U (PU)
- Flange Screws: Galvanized steel
These materials offer a good balance of durability, corrosion resistance, and lightweight structure.
🧰 7. How is it mounted?
The ADVU-25-25-A-P-A can be mounted:

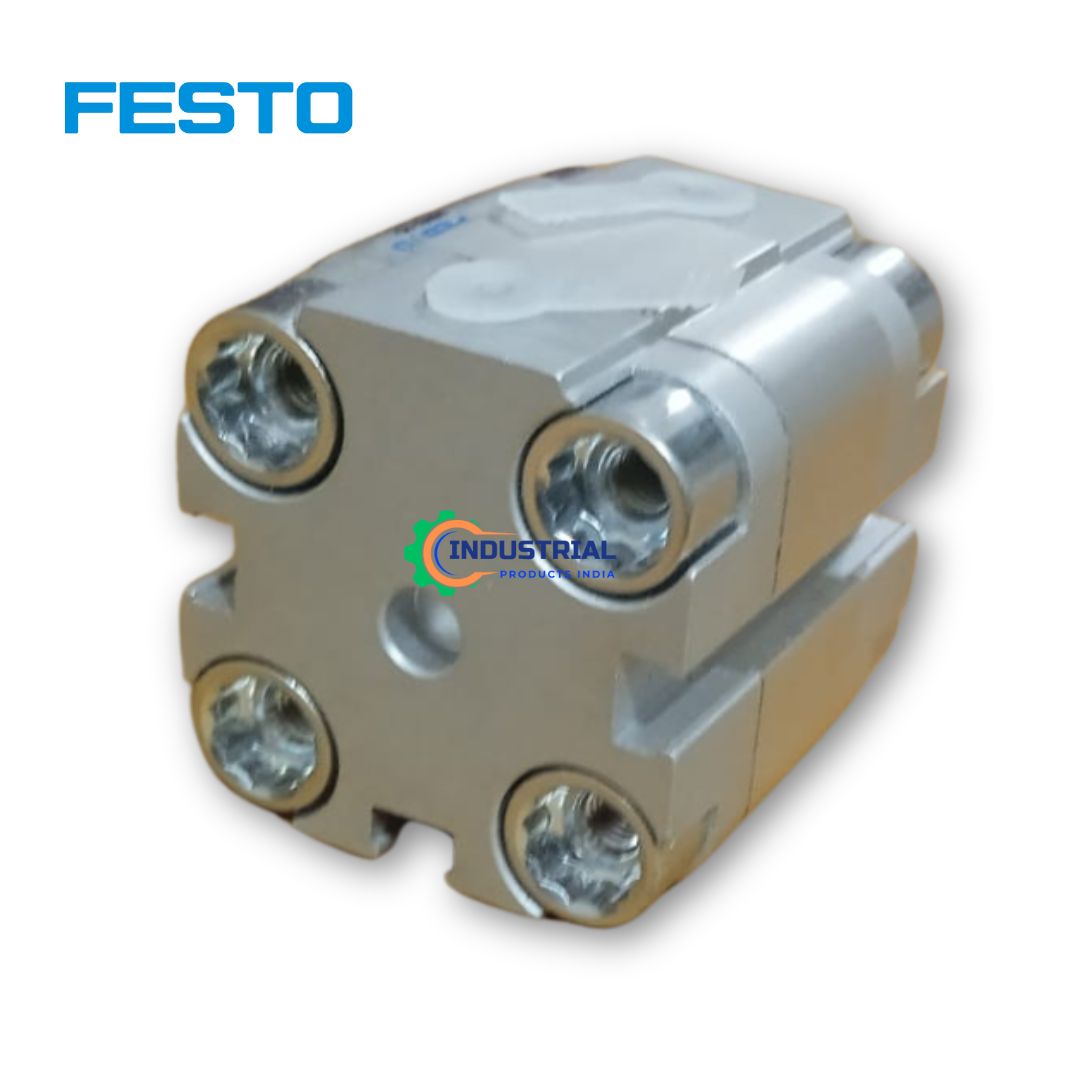

- Through-hole
- With Festo accessories (mounting kits, brackets, etc.)
This provides flexibility for machine builders and retrofit projects.
🏭 8. Which industries typically use this cylinder?
It’s ideal for:
- Automotive manufacturing
- Packaging and labeling machines
- Pick-and-place robotics
- Assembly automation
- Electronics and PCB handling
- Testing and inspection systems
🌍 9. Where is this product made?
The cylinder is Made in India, which ensures fast availability, local support, and compliance with Indian industrial standards.
🔩 10. What is the piston rod thread size?

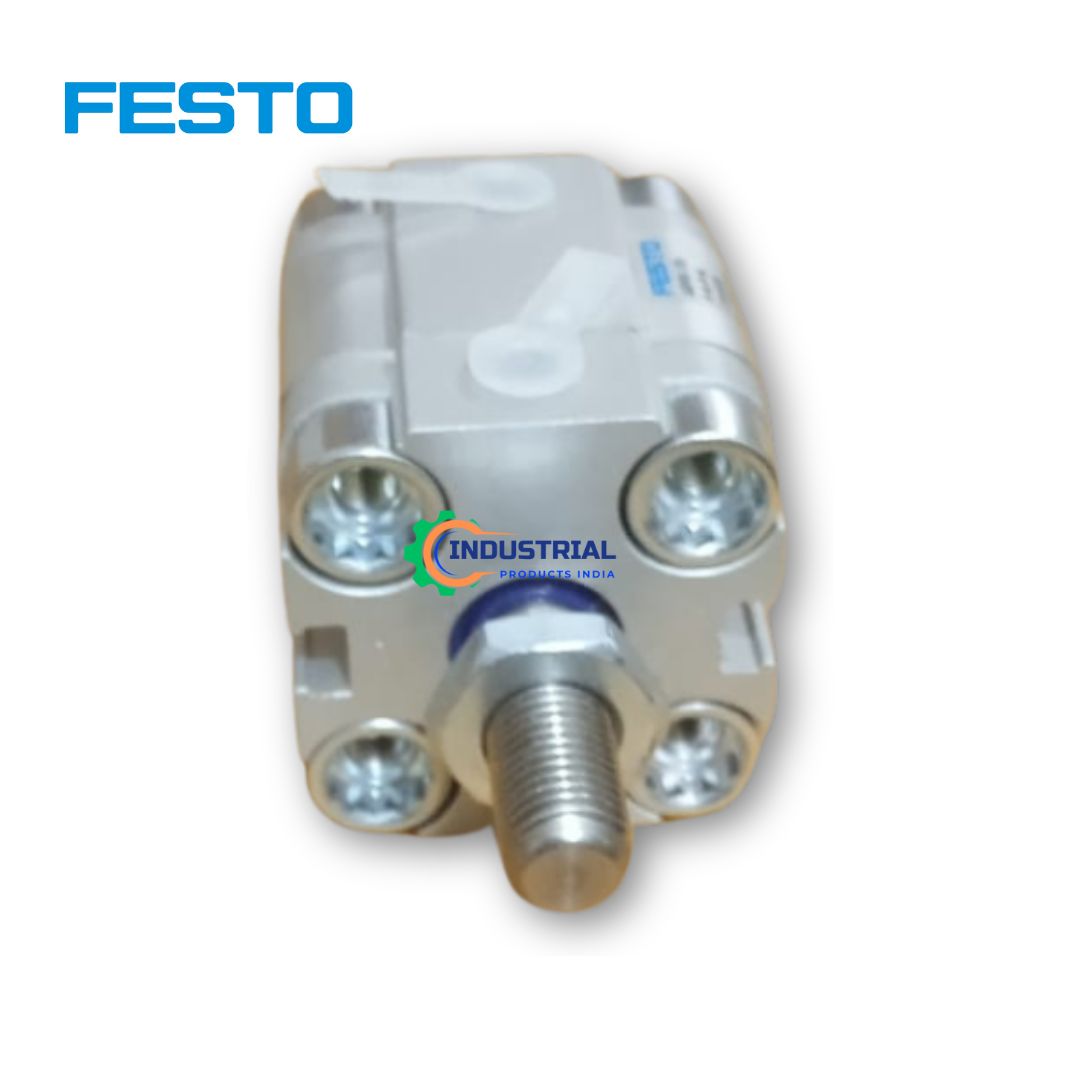

The piston rod end has an external thread of M10x1.25, allowing easy connection with clevises or threaded mounting parts.
🔍 11. Is a datasheet available?
Yes. A full technical datasheet is available and includes detailed diagrams, mounting options, and performance graphs. [Download Here – Link Placeholder]
📞 12. How can I get the best price or bulk quotation?
Instead of direct checkout, Industrial Products India connects you with verified vendors.
➡️ Simply click the WhatsApp quote button on the product page to chat directly with suppliers, compare rates, and get live availability.
🏷️ 13. What is the corrosion resistance rating?
The cylinder is rated CRC 2, which means it is suitable for environments with moderate corrosion stress. It’s commonly used in general industrial and semi-clean environments.
🧮 14. How much does it weigh?
- Basic weight: 180 g
- Moving mass at 0 mm stroke: 26 g
- Additional weight per 10 mm stroke: 28 g
This lightweight design ensures fast cycle times in automation.
🔧 15. Is this cylinder interchangeable with other brands?
Festo ADVU cylinders follow ISO dimensional standards, meaning they may be compatible with other ISO-profile compact cylinders, but always verify stroke length, mounting dimensions, and piston rod thread before replacement.
📌 Final Thoughts
The Festo ADVU-25-25-A-P-A cylinder is compact, powerful, and smart-factory ready. It’s a reliable choice for engineers looking to integrate precise motion control into tight machine spaces. Verified vendors on Industrial Products India make sourcing even easier with real-time WhatsApp quotes and technical guidance.
