ABB Contactor Relay N22E 220-230V 50Hz / 230-240V 60Hz

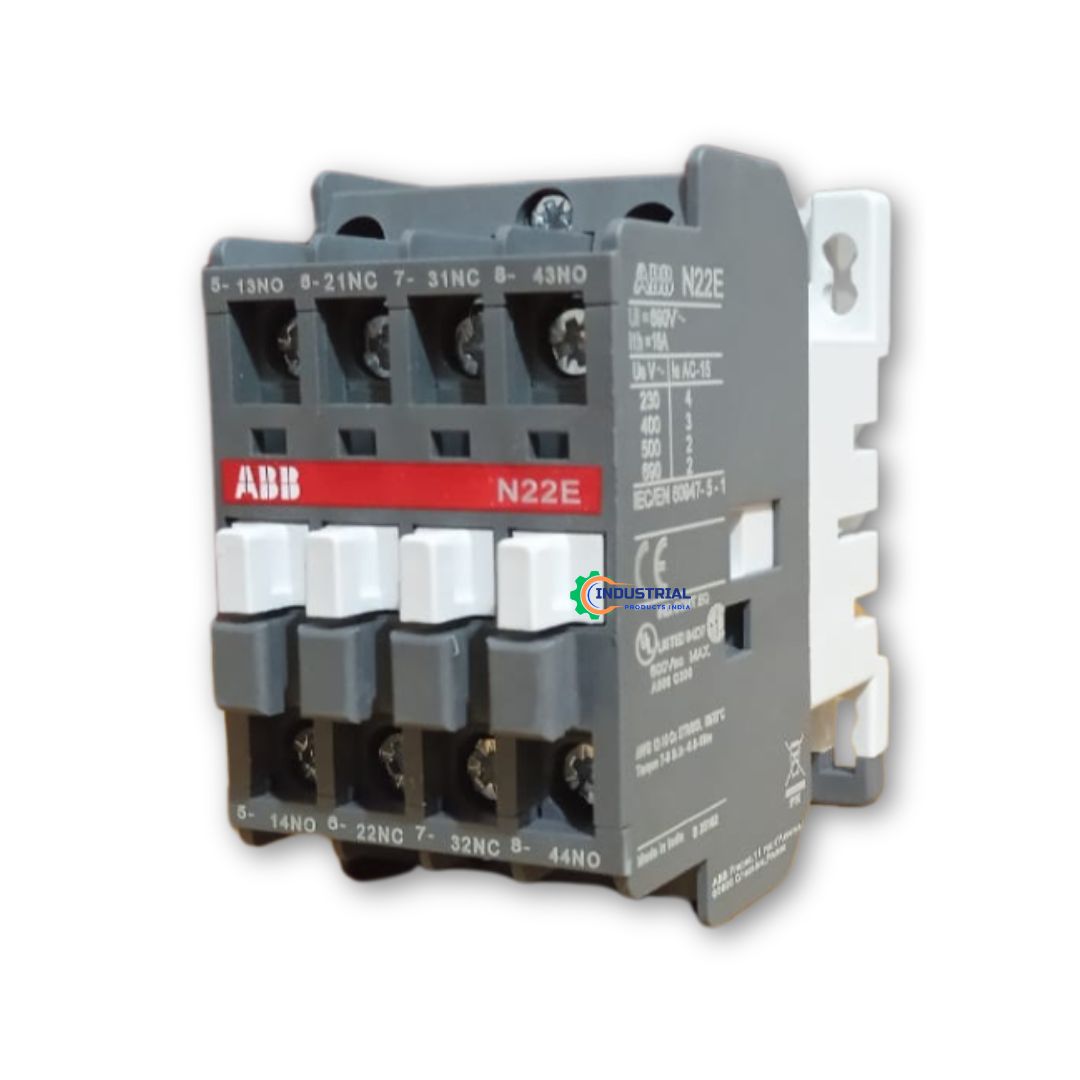

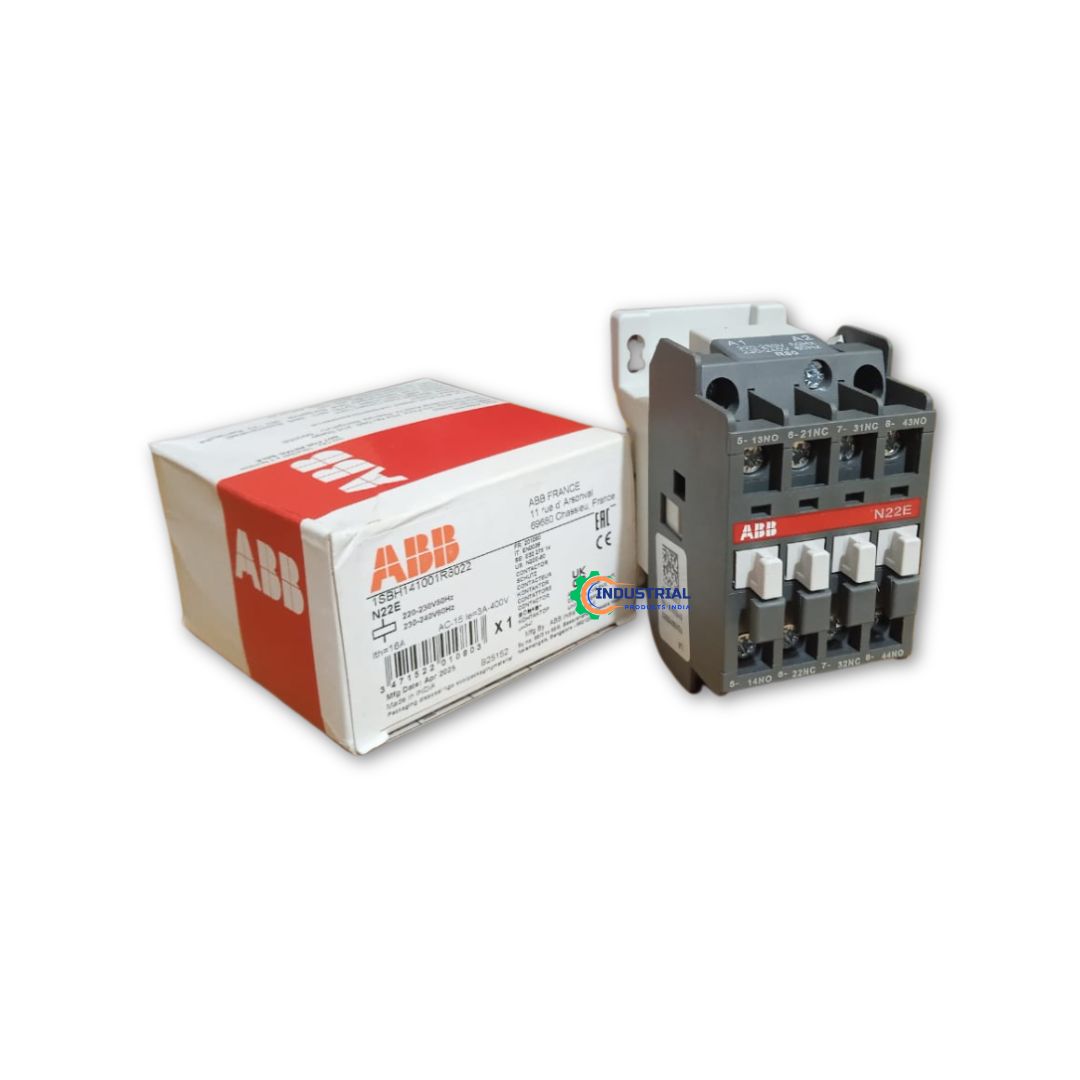

N22E Contactor Relay (220-230V 50Hz / 230-240V 60Hz) – 1SBH141001R8022

Looking for a reliable auxiliary switching solution? The N22E Contactor Relay is built for performance and durability. With a 4-pole configuration and a sturdy laminated magnet circuit, it’s optimized for control circuits that demand consistency and long service life. Designed to operate across a wide voltage and frequency range, this AC-operated relay offers seamless integration with your control systems.

Key Features at a Glance

• Rated Control Voltage: 220–230V (50Hz) / 230–240V (60Hz)

• 4 Poles: 2 NO + 2 NC contact configuration

• Max Switching Frequency: 6000 mechanical cycles/hour

• Coil Power Consumption:

  • Pull-in (50Hz): 70 VA

  • Holding (50/60Hz): 8.2 VA

• Rated Operational Voltage (Main Circuit): 690V

• Terminal Type: Screw terminals for secure connections

• Ambient Temperature Range:

  • Storage: -60 to +80°C

  • Operation: -40 to +70°C

• AC-15 Rated Current: Up to 6A depending on voltage

• DC-13 Rated Current: Up to 6A at 24V

• Operate Time:

  • NC Closing (De-energized): 9–16 ms

  • NO Opening (De-energized): 4–11 ms

  • NC Opening (Energized): 7–21 ms

  • NO Closing (Energized): 9–22 ms

• Standards Compliance: IEC 60947-5-1

Why Choose This Product

The N22E Contactor Relay delivers a robust and efficient solution for auxiliary and control circuit switching. Its compact design, combined with high-performance specs like fast operate times and wide operating temperatures, makes it ideal for harsh industrial settings. The mechanically linked contacts add an extra layer of reliability in safety applications. Designed for easy wiring and long-term use, it’s a solid addition to any control panel.

Ideal For

• Industrial Automation

• HVAC Systems

• Electrical Panels

• Manufacturing Lines

• OEM Equipment Builders

• Machinery Control Systems
