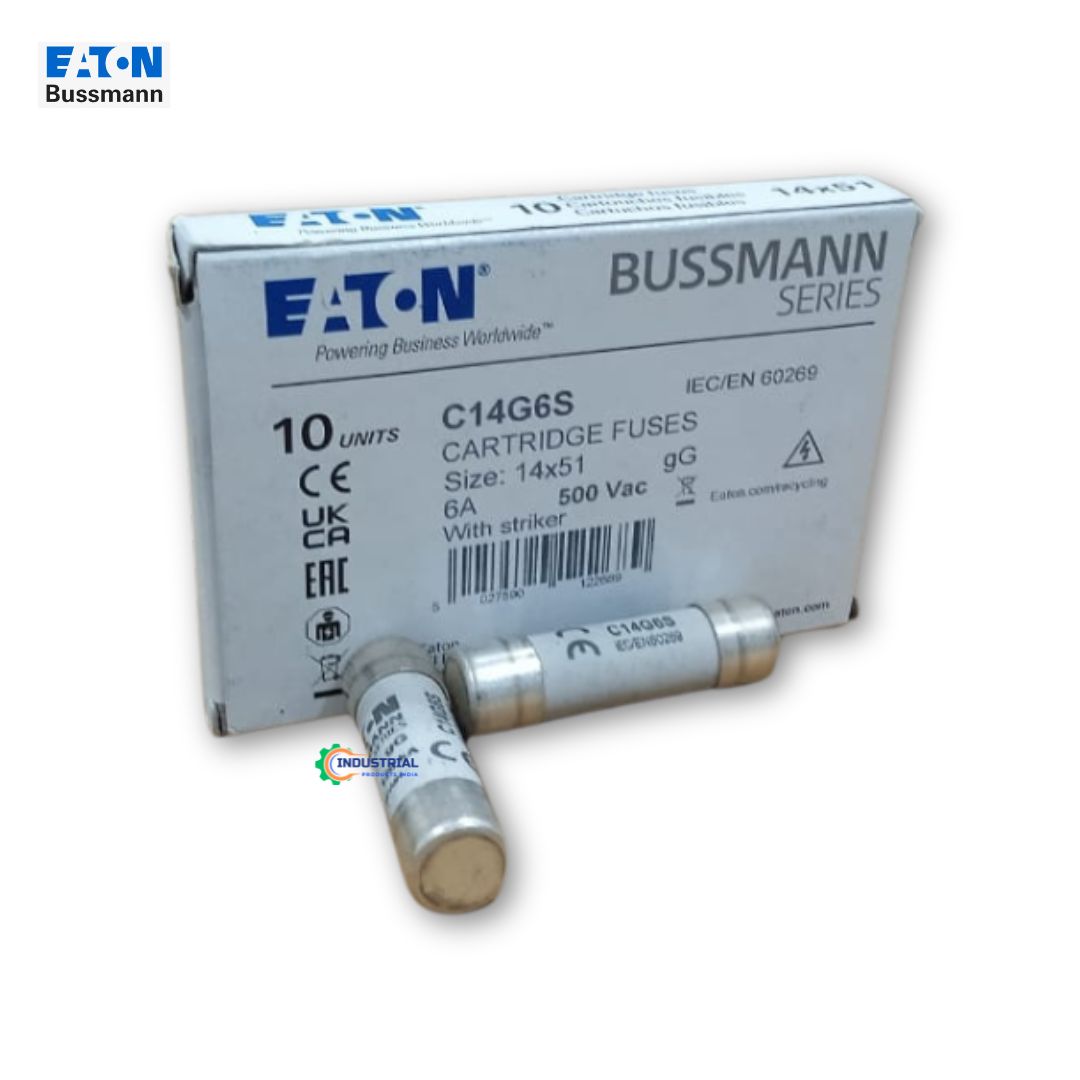

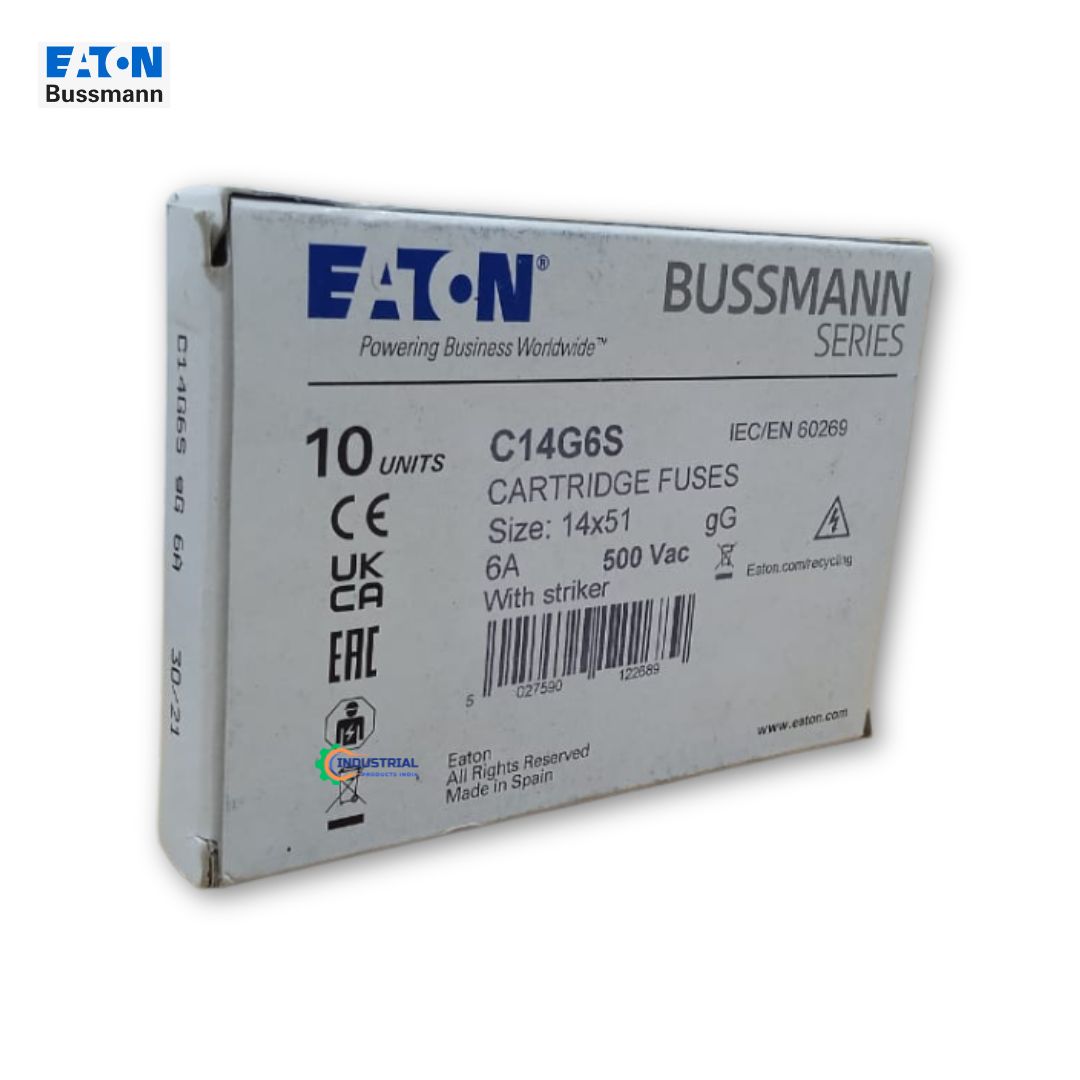

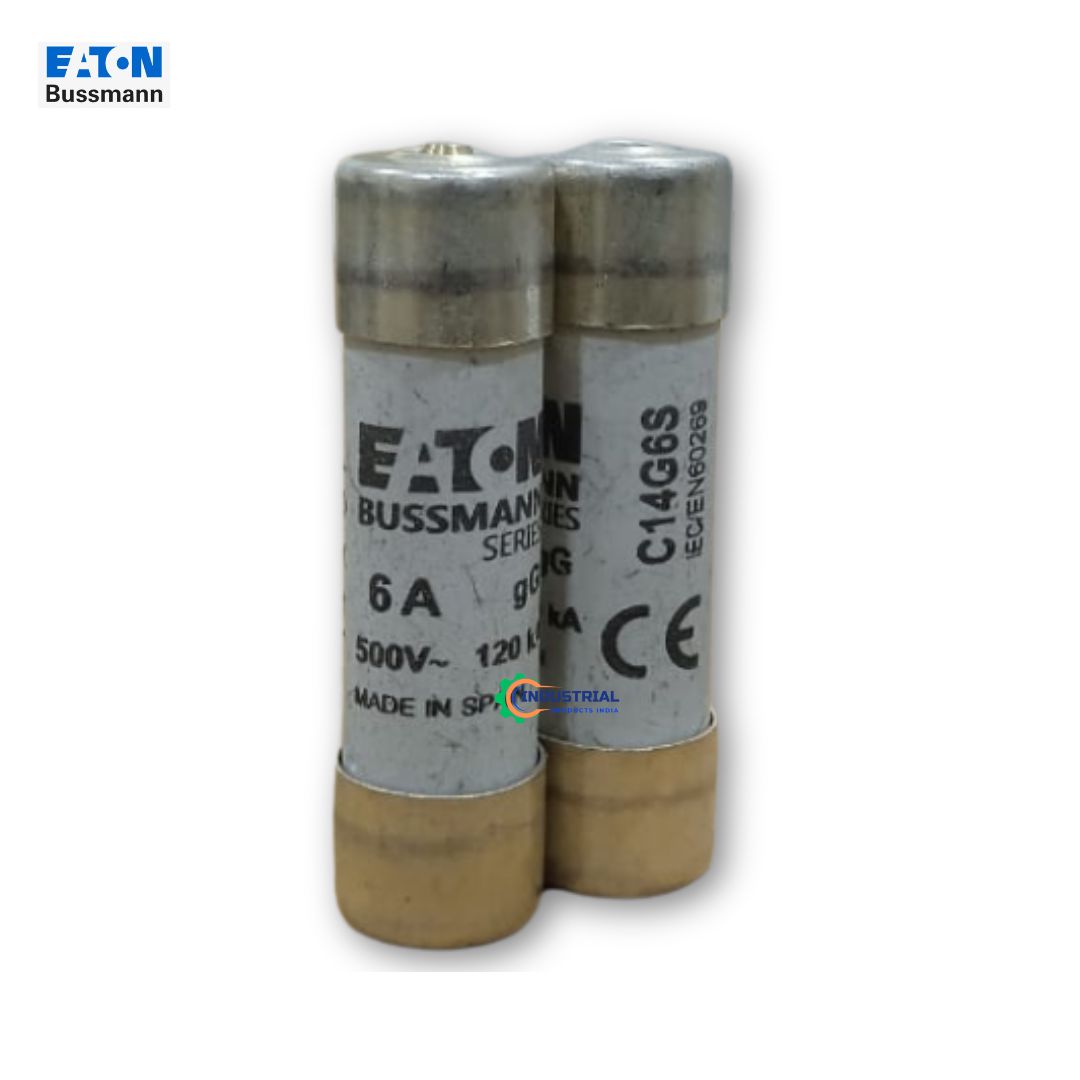

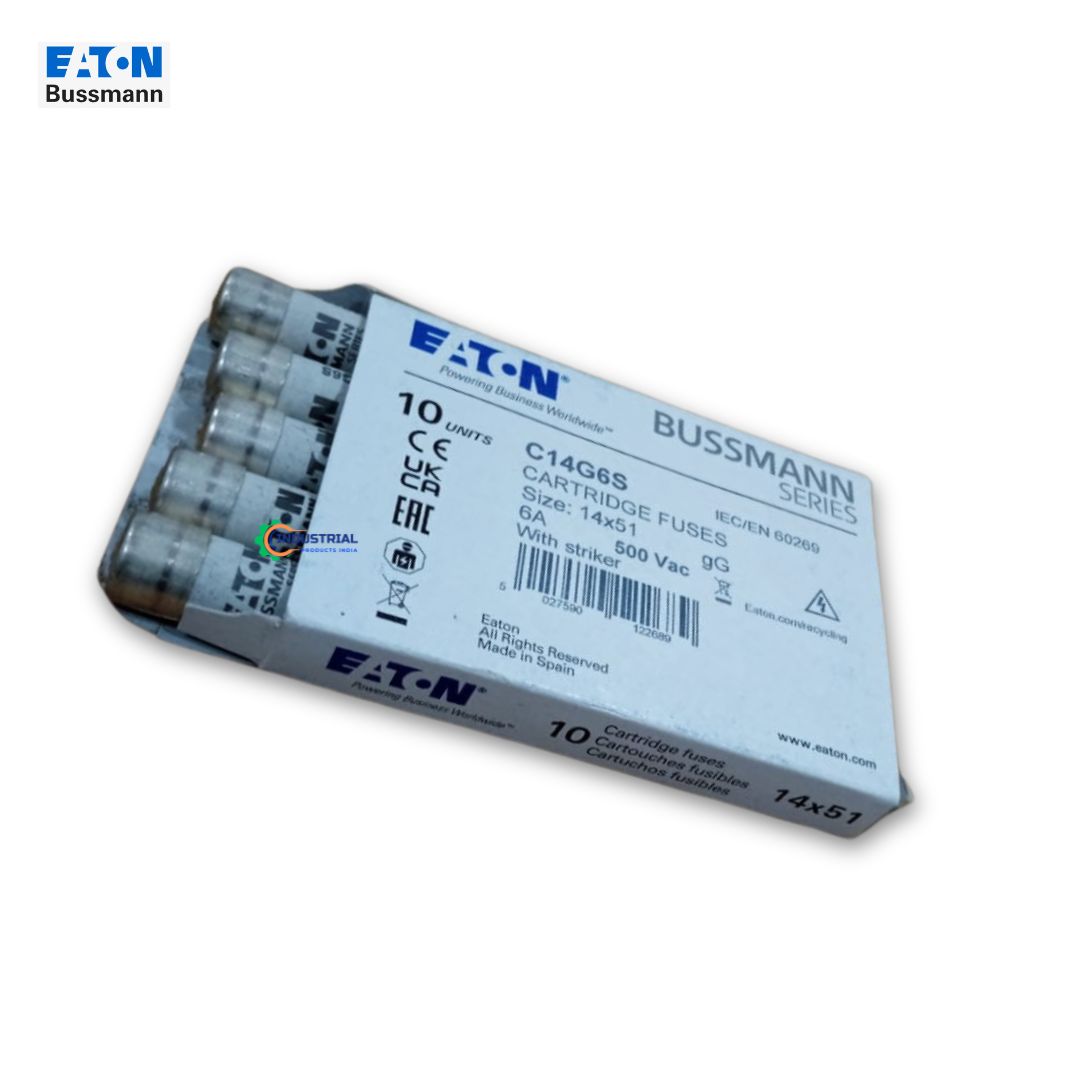

Eaton Bussmann C14G6S Cylindrical Fuse – 6A, 500V AC, Striker Type

Need a reliable low-voltage fuse for industrial or general-purpose protection? The Eaton Bussmann Series C14G6S offers a compact, high-performance solution. This 14 x 51 mm cylindrical fuse is rated at 6 Amps and 500V AC, with an impressive 120 kA breaking capacity. It comes with an integrated striker for visual fuse status and is compatible with CH14 modular fuse holders—perfect for industrial electrical panels.

🔹 Key Features at a Glance

• Rated Voltage: 500V AC

• Amperage: 6A

• Breaking Capacity: 120 kA

• Size: 14 x 51 mm (cylindrical)

• Fuse Class: gG/gL (Class C)

• Integrated Striker for fuse status indication

• Construction: Ceramic body, ferrule ends

• Frequency Range: 45–62 Hz

• Watt Loss: 1.15 W

• Certifications: IEC 60269, CE Marked, RoHS Compliant

• Country of Origin: Spain

• Sold in packs of 10

💡 Why Choose This Product

The Eaton Bussmann C14G6S fuse offers dependable overcurrent protection with high interrupting capacity, making it a top choice for both general-purpose and industrial applications. Its striker-type design provides easy status indication, reducing downtime and maintenance guesswork. Designed to fit CH14 modular holders, it’s easy to integrate into your existing fuse systems. Engineered in compliance with international safety standards, this fuse delivers the durability and safety Eaton is known for.

🏭 Ideal For

• Electrical distribution panels

• Industrial control panels

• Machinery protection

• Cable and equipment protection

• General-purpose low-voltage applications
