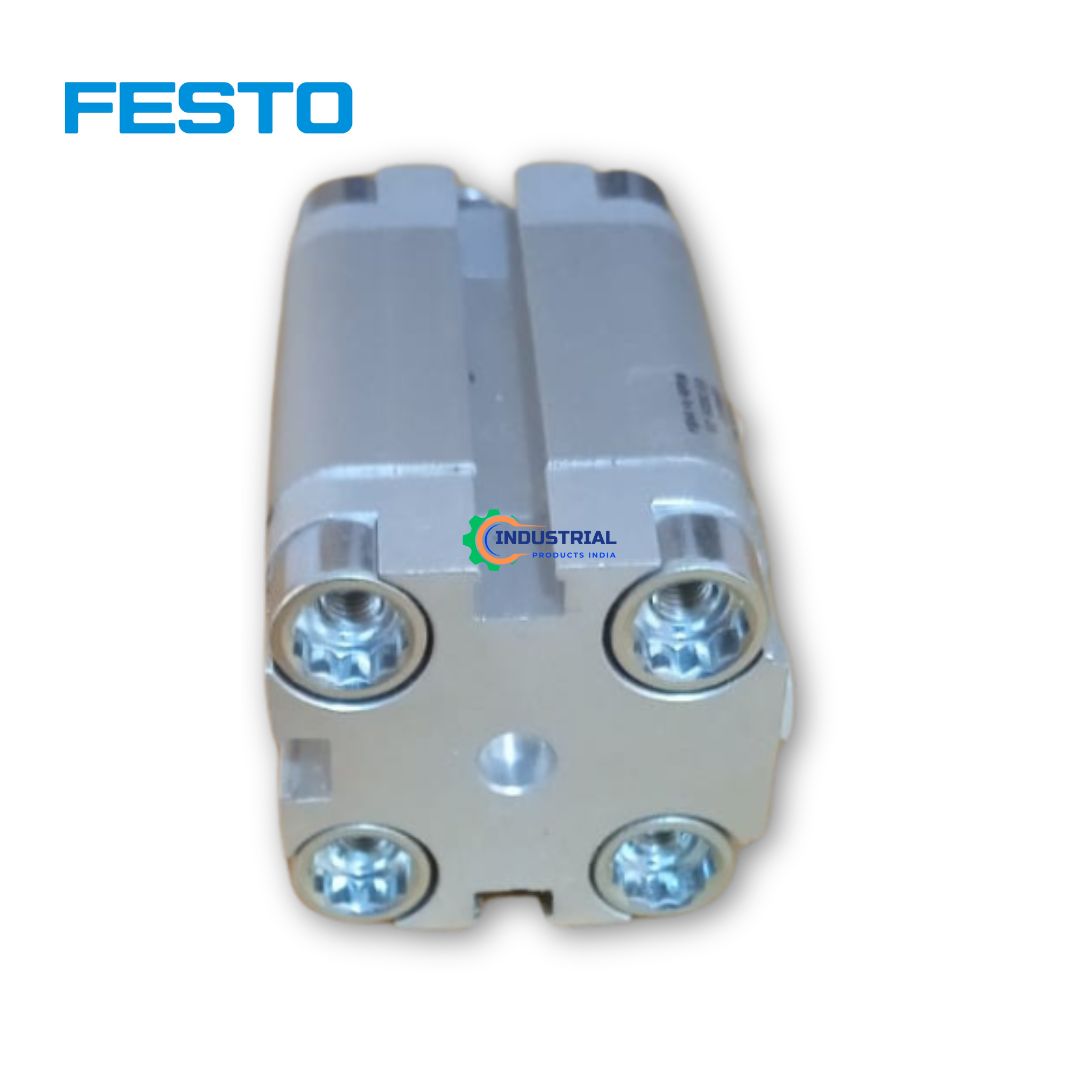

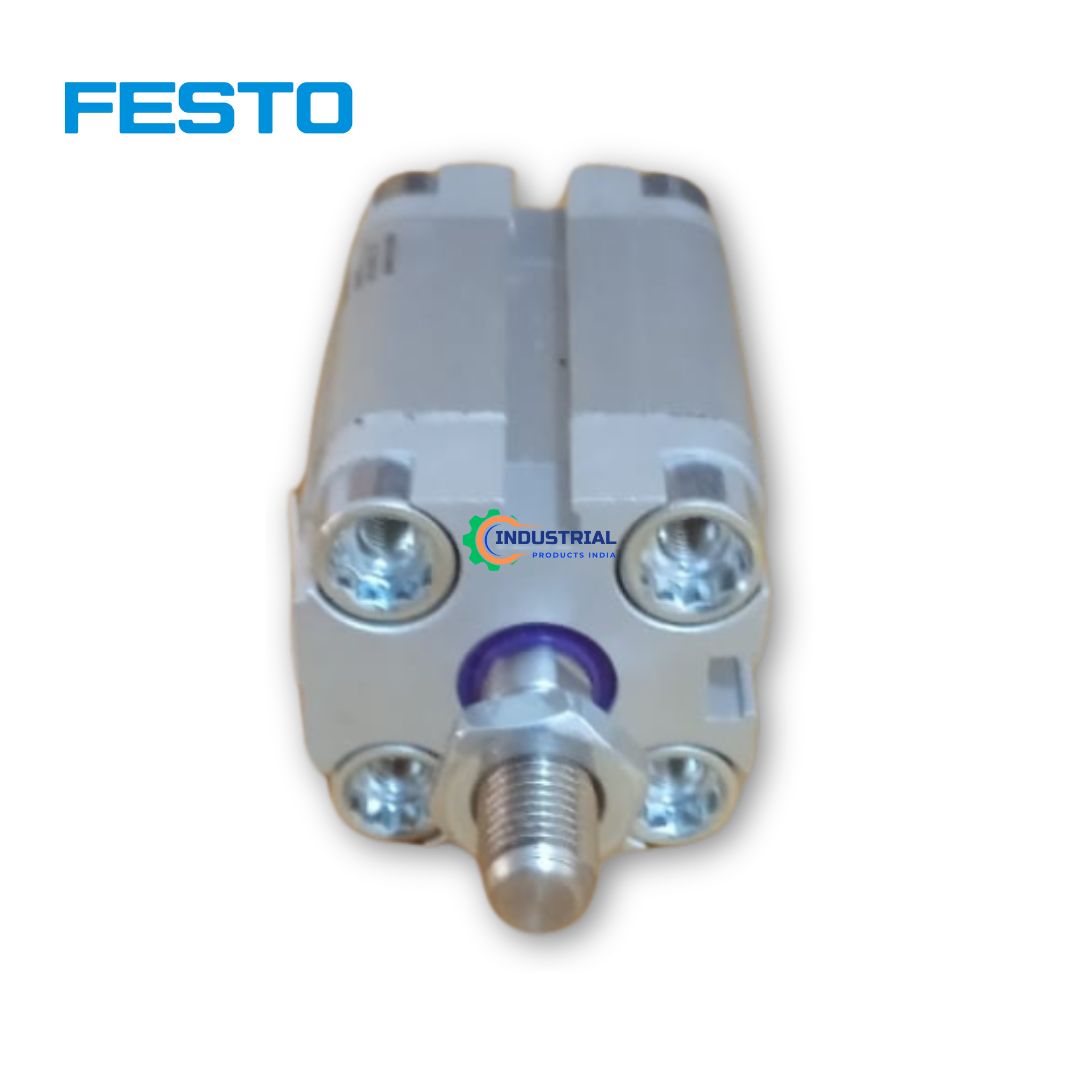

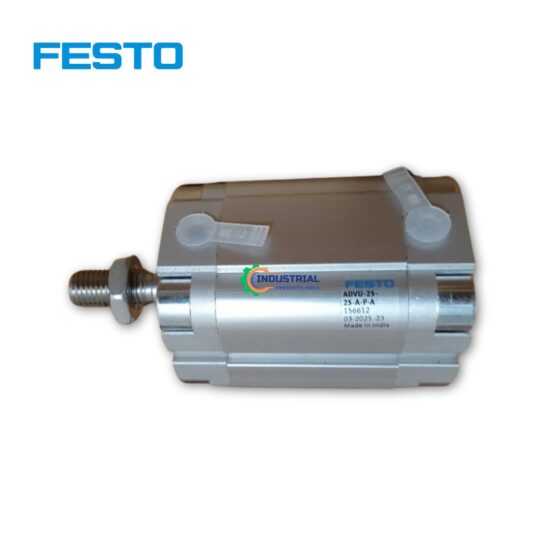

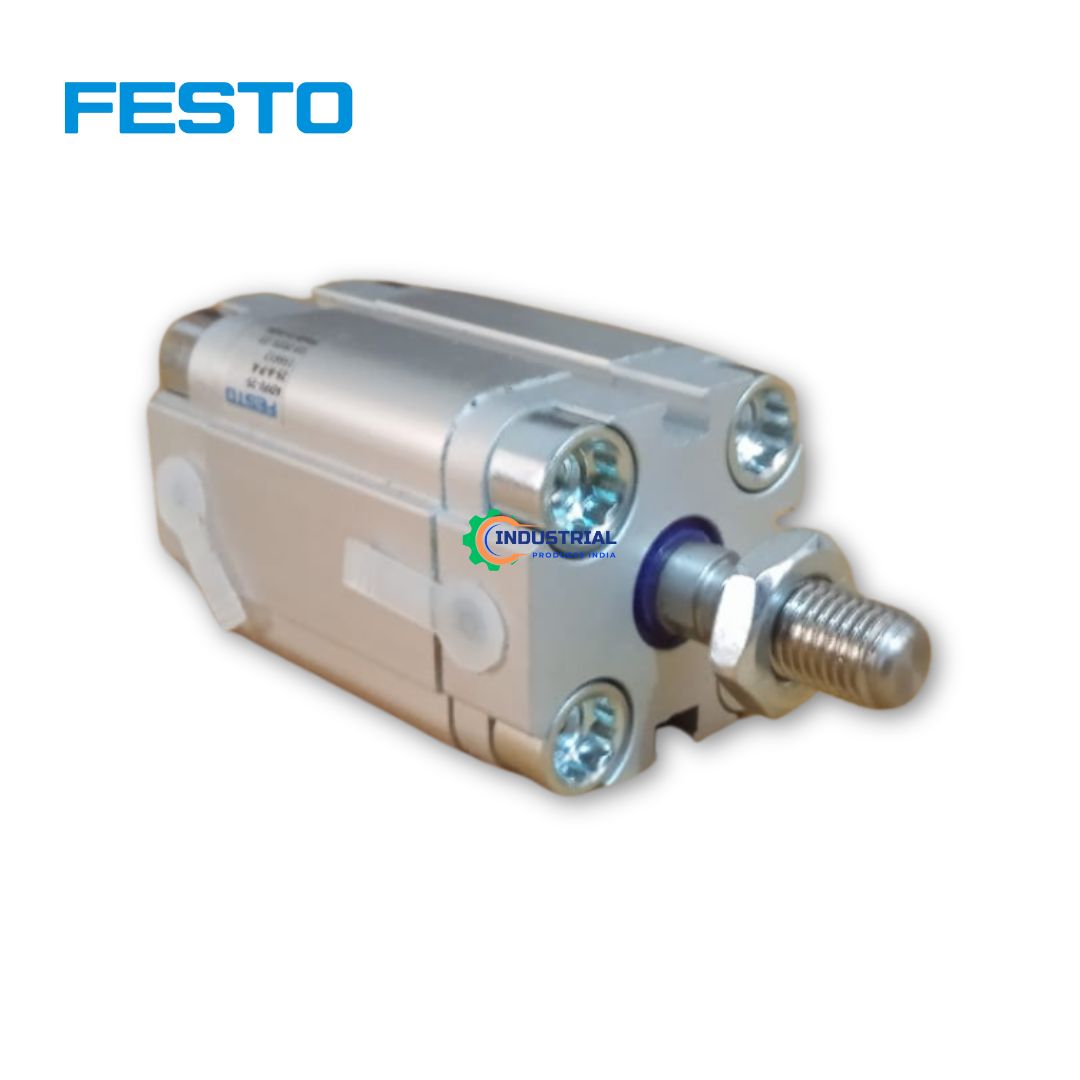

Festo ADVU-25-25-P-A Compact Cylinder-Double-Acting, 25 mm Stroke

The Festo ADVU-25-25-P-A is a high-performance, compact pneumatic cylinder designed for precise, space-saving applications. With a 25 mm piston diameter and stroke, this double-acting cylinder delivers a theoretical advance force of 295 N at 6 bar. Built with durable materials and equipped with elastic cushioning at both ends, it ensures smooth operation and extended service life even in demanding environments.

Key Features at a Glance

• Model: ADVU-25-25-P-A

• Piston Diameter: 25 mm

• Stroke Length: 25 mm

• Operating Pressure: 0.1 MPa to 1 MPa (14.5 to 145 psi)

• Cushioning: Elastic rings/plates on both ends

• Mounting Position: Flexible/Optional

• Rod End: Female thread (M5)

• Position Detection: Compatible with proximity switches

• Design: Single-end piston rod

• Material: High-alloy stainless steel rod, aluminium body

• Ambient Temperature: -20 °C to 80 °C

• Corrosion Resistance: CRC class 2 – Moderate

• Medium Compatibility: ISO 8573-1:2010 [7:4:4] compressed air

• Lubrication: Optional, continuous if started lubricated

Why Choose This Product

The Festo ADVU-25-25-P-A offers reliable performance in a compact footprint, making it ideal for automated systems with limited space. Its robust aluminium body and stainless steel piston rod provide lasting durability, while its optional mounting positions and support for proximity switch detection make integration easy. Whether you’re optimizing a new system or upgrading an existing setup, this cylinder balances performance and flexibility with ease.

Ideal For

• Automation Equipment

• Robotics and Pick & Place Units

• Packaging Machinery

• Assembly Lines

• Material Handling Systems

• Laboratory Automation

• Food & Beverage (with lubrication conformity)

• General Industrial Applications
