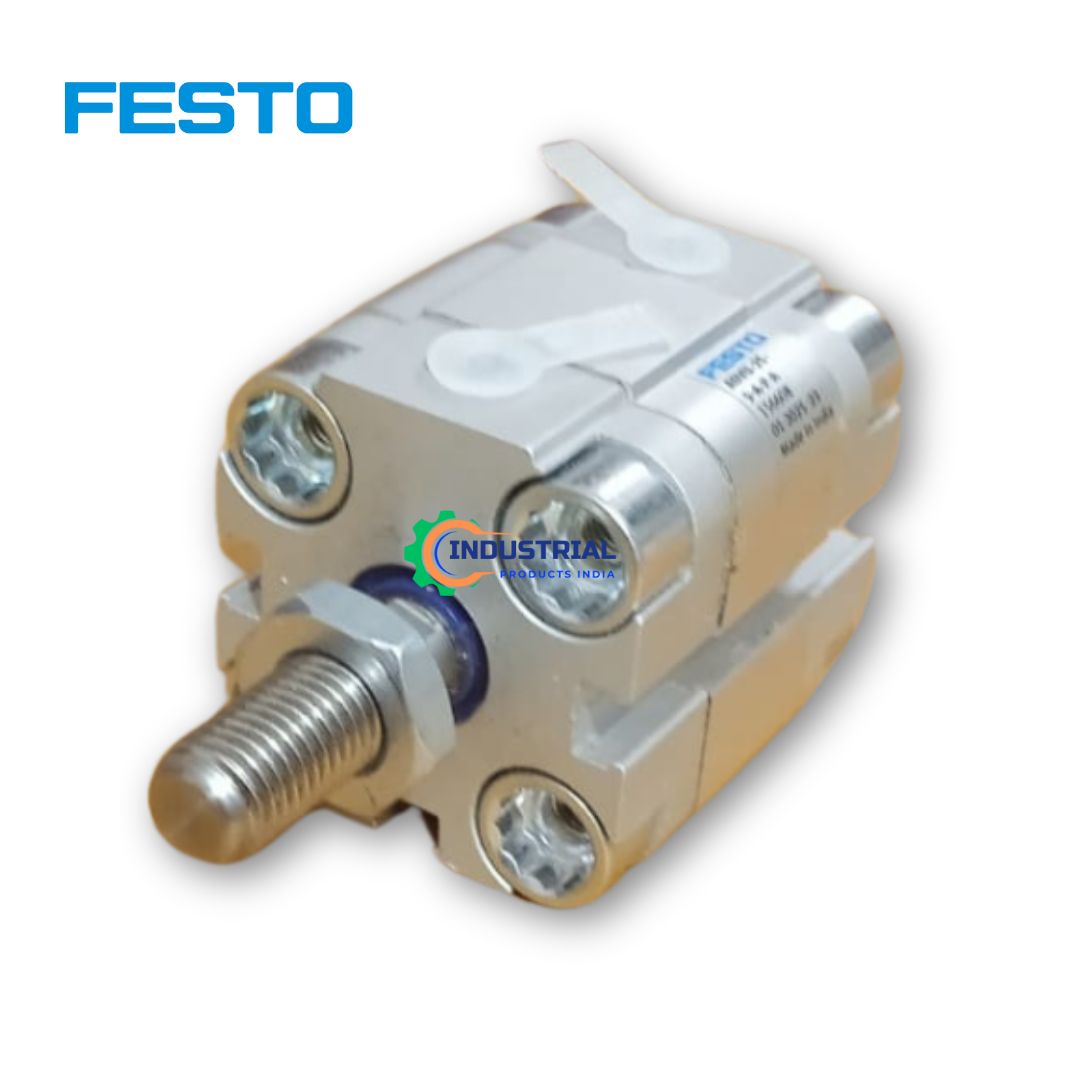

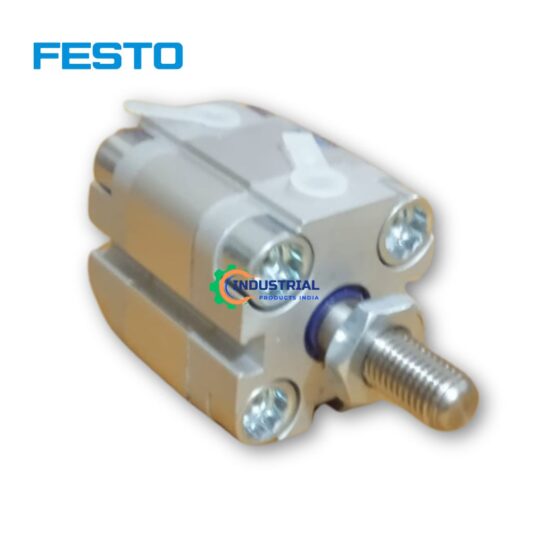

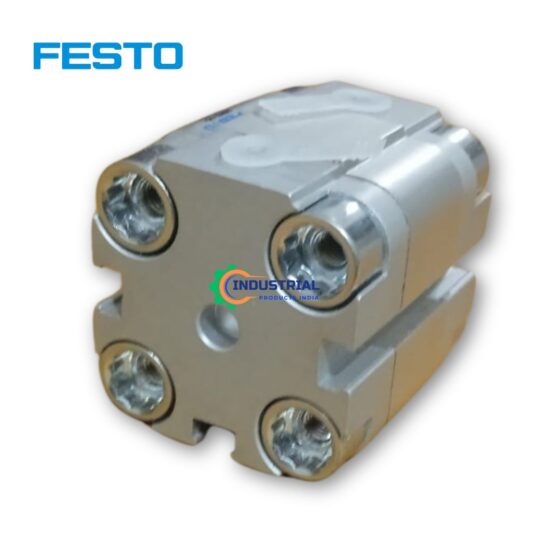

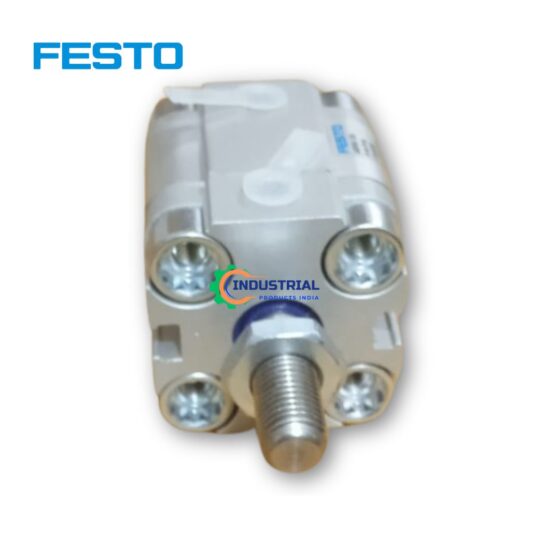

Festo Compact Air Cylinder ADVU-25-25-A-P-A

Looking for a reliable, compact pneumatic solution for precise linear motion? The Festo ADVU-25-25-A-P-A Compact Air Cylinder offers a space-saving design with double-acting functionality, ideal for automated systems requiring consistent force and control. With a 25 mm stroke and high corrosion resistance, this unit ensures smooth operation across various mounting positions.

Key Features at a Glance

• Double-acting operation for both advance and retract strokes

• 25 mm piston diameter with a 25 mm stroke length

• Theoretical force at 6 bar: 295 N advancing / 247 N retracting

• Elastic cushioning at both ends for reduced impact energy (0.1 J)

• Any mounting position possible

• Position sensing capability (proximity sensor compatible)

• External thread M10x1.25 piston rod

• Corrosion resistance class 2 (moderate stress)

• Operating pressure: 1 to 10 bar

• Compatible with lubricated and non-lubricated compressed air

• Ambient temperature range: -20 °C to 80 °C

• Compact, lightweight design with 180 g base weight

• M5 pneumatic connection

• Made with high-grade stainless steel and aluminum alloy

Why Choose This Product

The Festo ADVU-25-25-A-P-A is a solid choice for engineers looking to save space without compromising on performance. Its high-quality build materials, coupled with reliable elastic cushioning and flexible mounting options, make it an all-around performer in many industrial setups. The unit’s readiness for proximity sensing also simplifies integration into smart pneumatic systems.

Ideal For

• Automation & Assembly Lines

• Packaging Machinery

• Robotics & Pick-and-Place Units

• Automotive Manufacturing

• Electronics & Semiconductor Handling

• Testing & Inspection Systems

Get a Quick Quote via WhatsApp

Ready to add the Festo ADVU-25-25-A-P-A to your setup? Contact verified vendors now for the best quotes and lead times. Click the button to connect directly via WhatsApp—fast, easy, and hassle-free.
