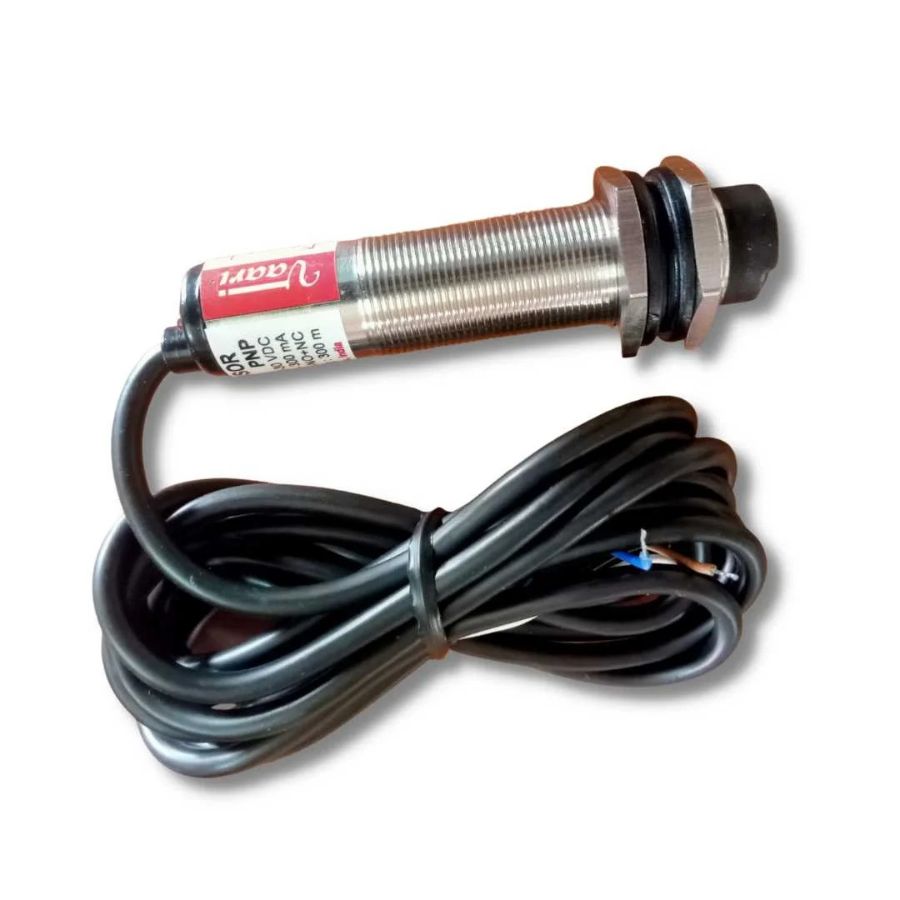

VPE-B18LT300-WX-P1 Photo Electric Sensor

Vaari VPE-B18LT300-WX-P1 Photo Electric Sensor – Diffused Type
Reliable and compact photoelectric sensor designed for precision detection. Built to withstand industrial conditions with stable, efficient performance.
Ideal for high-speed applications where accuracy and consistency are critical.
Its nickel-plated Cuzn housing ensures durability even in demanding environments.
With intuitive LED indicators and plug-and-play M12 connection, setup is hassle-free.

Key Features at a Glance

• Sensor Type: Diffused

• Switching Output: PNP, Light sensing

• Rated Operating Distance: 290mm ±10%

• Supply Voltage: 10–30 VDC

• Operating Frequency: 25Hz

• Current Rating: 200mA

• No-load Current: <50mA

• Voltage Drop: <2.2 VDC

• Off-State Current: <0.1mA

• Hysteresis: <10%

• Rated Insulation Voltage: 75VDC

• Ambient Light Immunity: 3000 Lux

• Protection Circuit: Short circuit / Polarity reversal

• Function Indicators: Red LED (Output), Green LED (Stability)

• Operating Temperature: -5°C to +55°C

• Housing Material: Cuzn, Nickel Plated

• Ingress Protection: IP54

• Connection Type: M12 Connector

• Standards: EN 60947-5-2

• Approval: CE, India

Why Choose This Product

The Vaari VPE-B18LT300-WX-P1 is built for durability and precision, offering a solid 290mm sensing range with a fast 25Hz response. Designed to handle challenging conditions with protection circuits and LED indicators, this sensor ensures stable operation with minimal maintenance. The M12 connector makes installation quick and secure, and compliance with international standards means reliability you can trust.

Ideal For

• Packaging Industry

• Conveyor Systems

• Robotics & Automation

• Material Handling

• Assembly Lines

• Factory Automation
